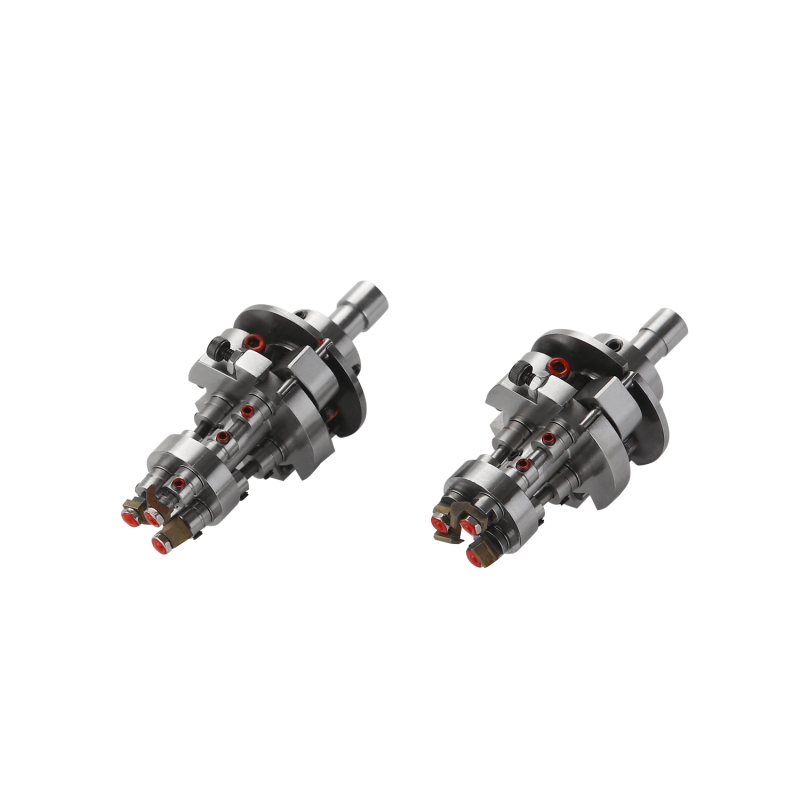

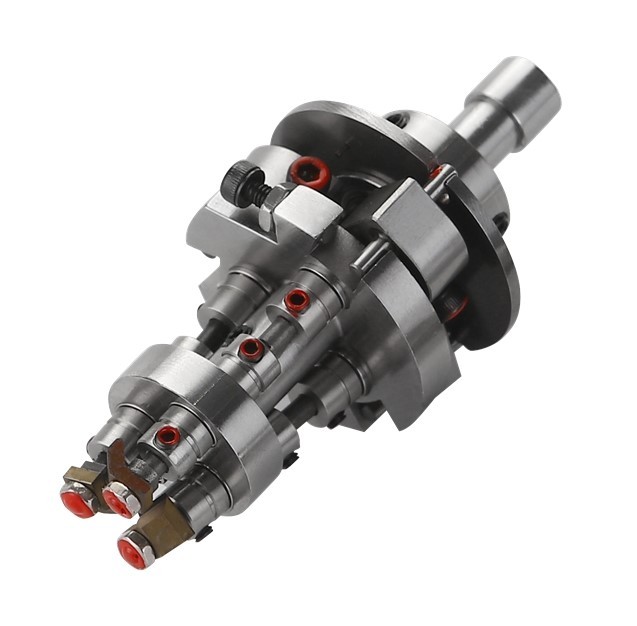

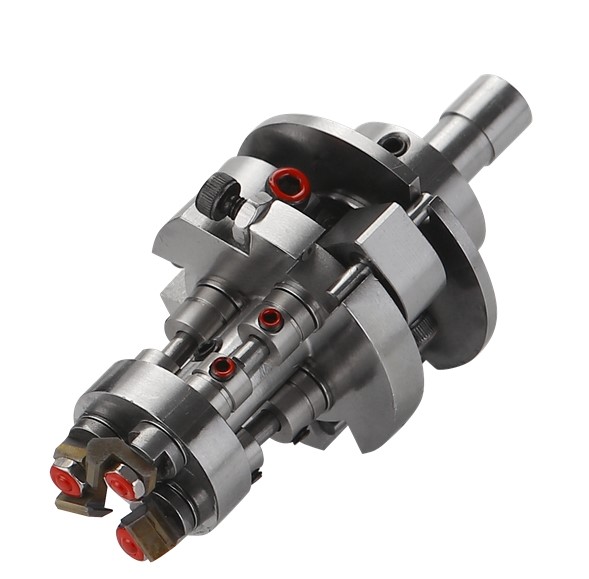

1. Product Overview: High-Precision Rotary Enamel Wire Stripping Tool
SIPU precision adjustable rotary wire stripper heads adopt premium artificial diamond blade material, which brings ultra-high wear resistance and stable stripping consistency.
Our multi-claw rotary stripping structure achieves 360° uniform paint layer removal, completely protecting the internal copper conductor from damage. Widely compatible with full-automatic coil winding machines and semi-automatic special stripping equipment, covering ultra-fine wire to thick heavy-gauge enameled wire processing scenarios.
We provide standard 19-series & 24-series models, full non-standard customized solutions, perfectly matching diversified coil production processes.
2. Core Product Features
Premium Artificial Diamond Blade Material
The stripping blades are made of high-wear-resistant synthetic artificial diamond, with extreme hardness and ultra-long service life. It maintains stable sharpness in long-hour high-frequency continuous production, far exceeding tungsten steel & HSS steel stripping tools.
Adjustable Precise Stripping Structure
Built-in adjustable linkage mechanism, freely matches different wire diameter specifications, ensures uniform and consistent paint stripping effect in batch mass production.
Different End Distance Options

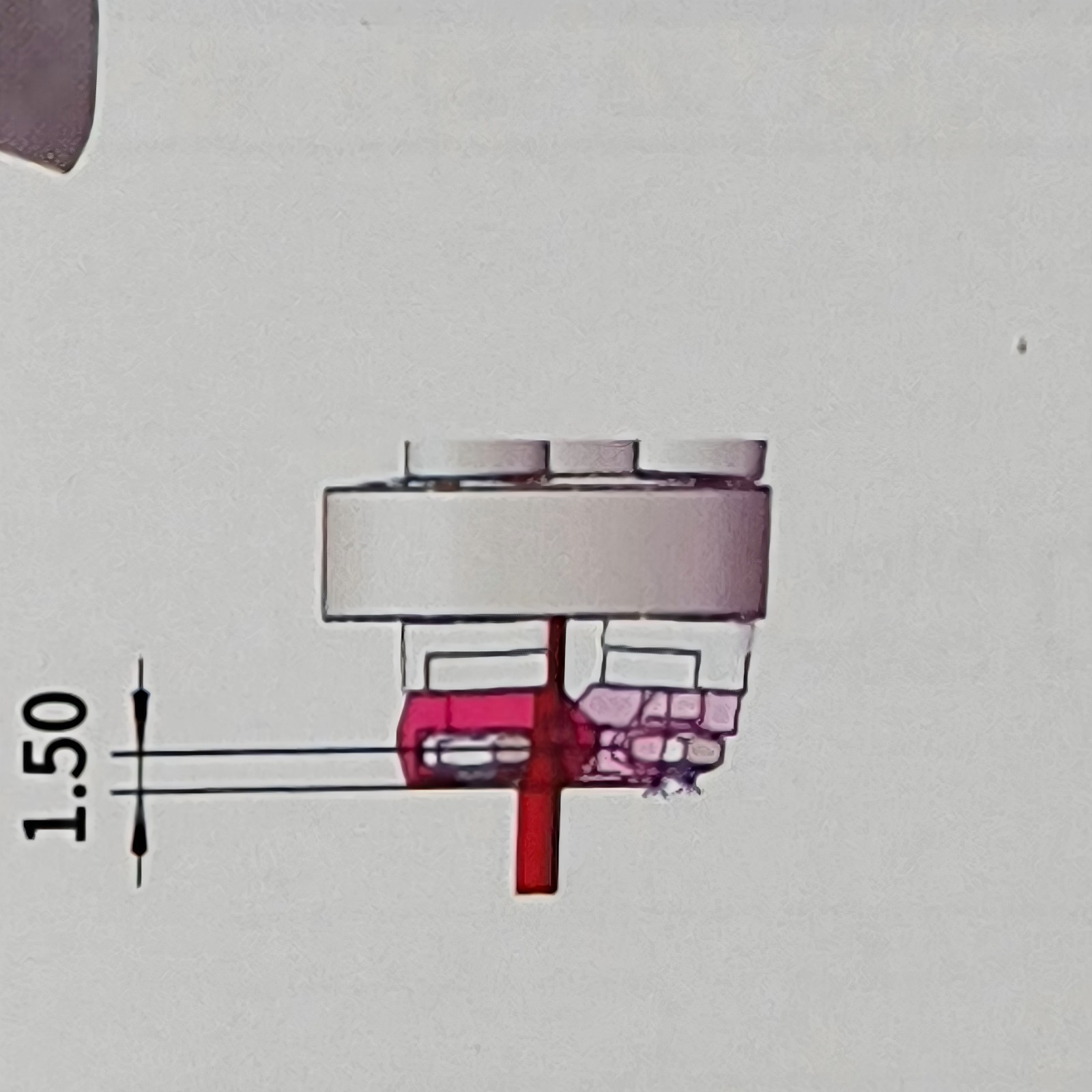

24 Models: Closing point distance from end face ≈ 1.5mm, suitable for short-distance precise stripping scenarios

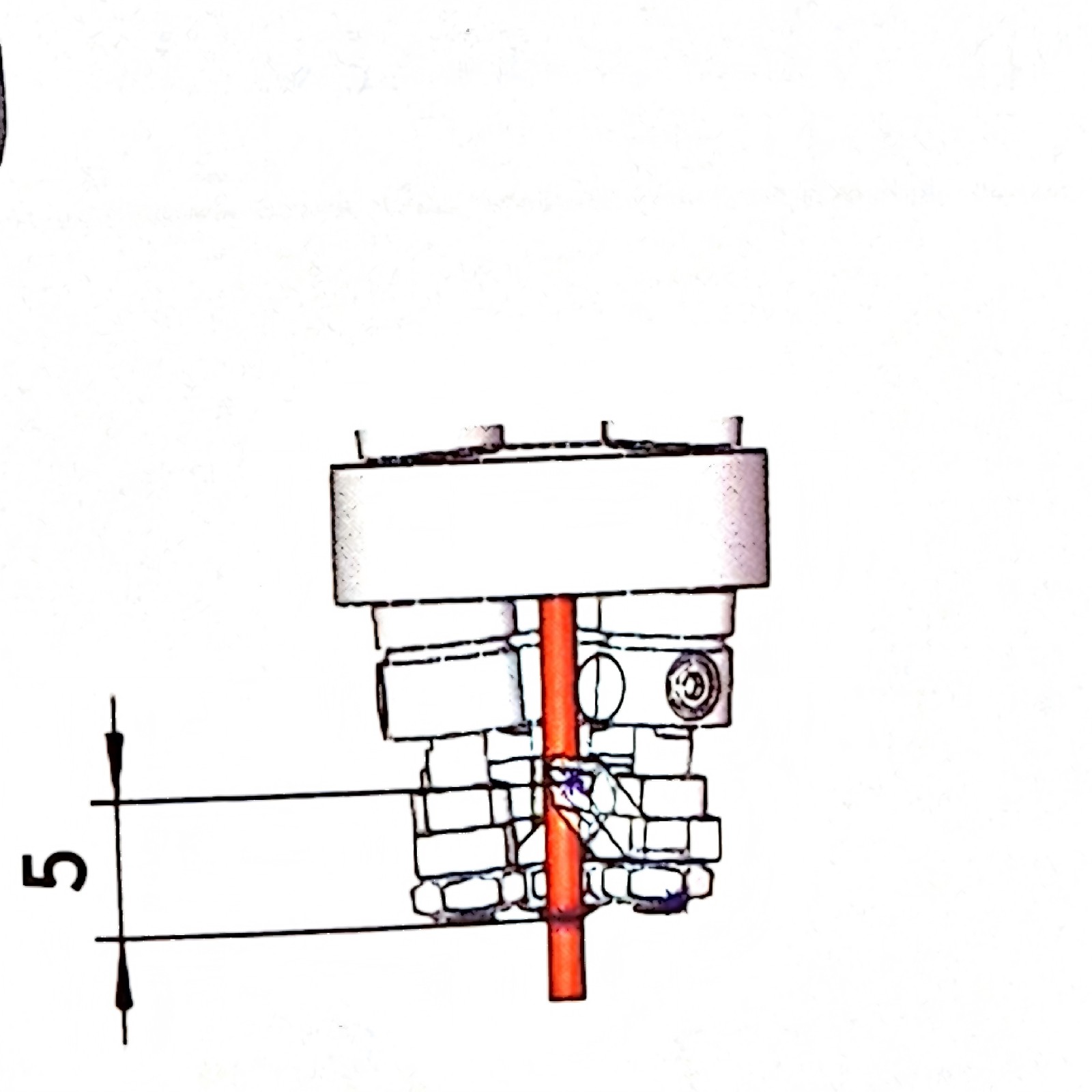

19 Models: Closing point distance from end face ≈ 5mm, suitable for long-section enamel layer removal
Stable Rotary Multi-Claw Design
Composed of torsion spring, linkage disc, linkage rod and precision D-hole blades, flexible rotation, no wire jamming, stable matching with high-speed motor operation.
Universal Equipment Compatibility & Custom Support
Standard installation size, directly fits mainstream automatic winding & stripping machines. We support customized blade shape, overall size and special wire diameter range for non-standard production requirements.
3. Standard Model Specification Parameter Table
19
24
| Model Series | Wire Diameter Range (mm) | Mounting Dimensions | Overall Size (Outer Diameter × Total Length) | End Face Closing Distance |
| PPKSS-19 | 0.15 ~ 0.70 | Φ7×13.0 | Φ31(MAX)×68mm | 5mm |
| PPKS-19 | 0.70 ~ 1.20 | Φ7×13.0 | Φ31(MAX)×68mm | 5mm |
| PPKM-19 | 1.20 ~ 1.80 | Φ7×13.0 | Φ31(MAX)×68mm | 5mm |
| PPKL-19 | 1.80 ~ 2.80 | Φ7×13.0 | Φ42(MAX)×68mm | 5mm |
| PPK-24 | 0.20 ~ 1.20 | Φ7×13.0 | Φ31(MAX)×63mm | 1.5mm |
| PPKM-24 | 1.20 ~ 2.00 | Φ7×13.0 | Φ31(MAX)×63mm | 1.5mm |

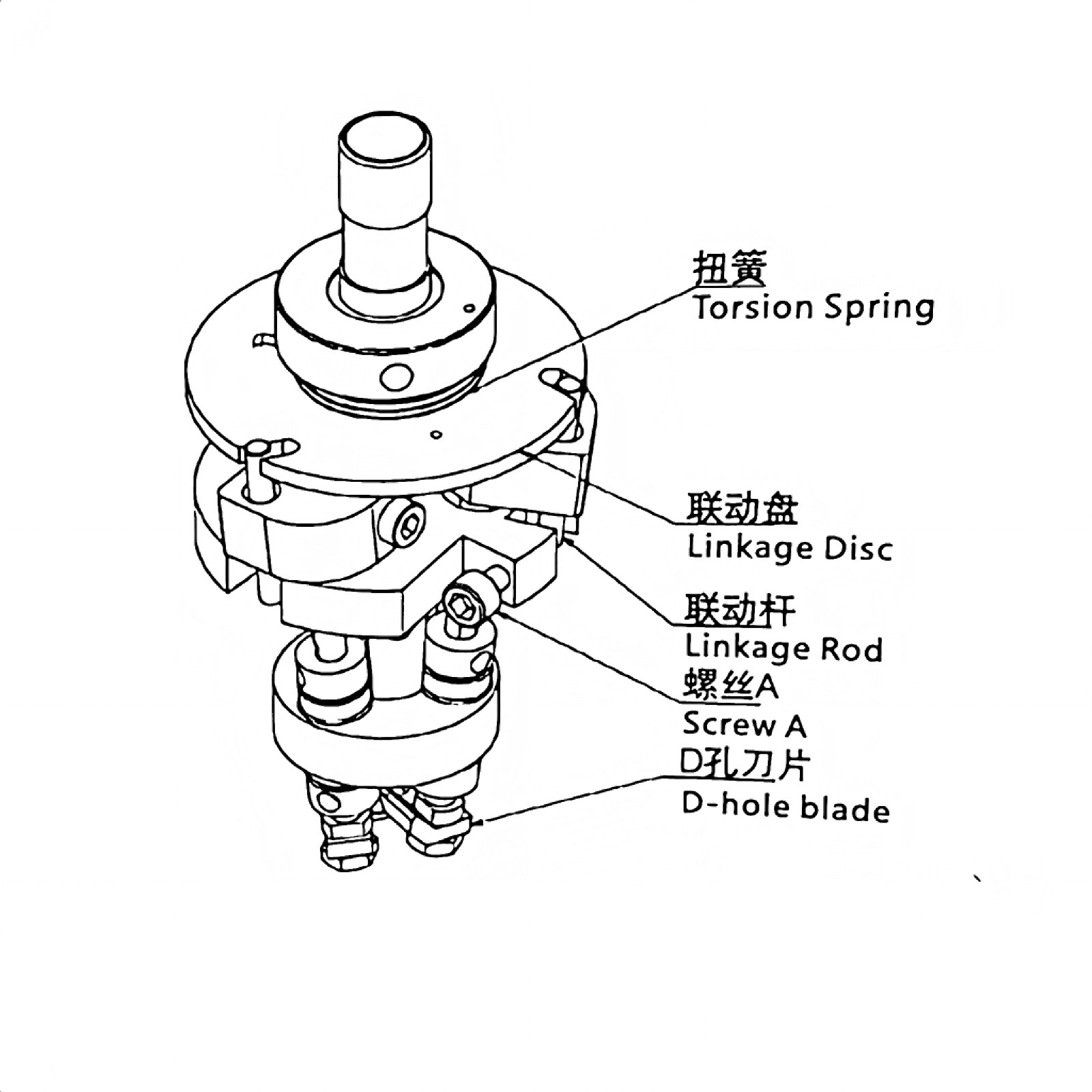

4. Internal Structure Composition
Torsion Spring: Provides stable clamping force for automatic opening & closing of blades
Linkage Disc: Transmits rotary power, drives multi-blade synchronous linkage operation
Linkage Rod: Connects each moving part, ensures consistent angle of all stripping blades
Fixing Screw A: Adjusts stripping range and wire diameter matching parameters
D-hole Artificial Diamond Blade: Core working part, precise 360° enamel insulation stripping
19
overview
24
5. Professional Operation & Adjusting Method
5.1 Adjust Stripping Wire Range
5.2 Optimize Stripping Process Effect
The paint stripping depth is positively correlated with motor rotating speed and wire feeding speed. Properly adjust equipment RPM (0-8000 adjustable) and wire running speed, to achieve the best complete paint removal effect without damaging copper core.
6. Important Usage Notes
6.1. Please read the full product instruction manual carefully before installation and operation.
6.2. Diamond blades are fragile precision parts, please handle and install gently to avoid impact damage.
6.3. Do not loosen the red marked positioning screws on the stripper head at will, which will cause precision deviation and uneven stripping quality.
6.4. Match corresponding model stripper according to actual wire diameter, avoid overload cutting operation.
7. FAQ
Q1: What wire diameter can SIPU diamond wire stripper handle?
A1: Our standard models cover Ø0.15mm ultra-fine enameled wire to Ø2.8mm thick heavy-gauge wire. We also support customized ranges for special thin & thick wire processing requirements.
Q2: What is the service life of artificial diamond stripping blades?
A2: Under normal standardized operation, diamond blades have ultra-long service life, far exceeding HSS and carbide steel blades. Stable performance for millions of continuous stripping cycles, greatly reducing your tool replacement cost.
Q3: Are your stripper heads compatible with other brand winding machines?
A3: Yes. Our products adopt industry universal standard mounting size, can directly replace original stripping heads of most mainstream automatic coil winding and stripping equipment.
Q4: Can you make customized strippers for flat enamel wires?
A4: Absolutely. We provide full non-standard customization for flat wire, rectangular wire and special-shaped enamel wires. Just provide wire drawings or physical samples, we finish precision customized production.
Q5: What is the difference between 19 type and 24 type stripper heads?
A5: The core difference is the distance between blade closing point and end face. 24 type is 1.5mm for short-distance precision stripping; 19 type is 5mm for long-section paint layer stripping, you can choose according to your actual stripping length requirements.
