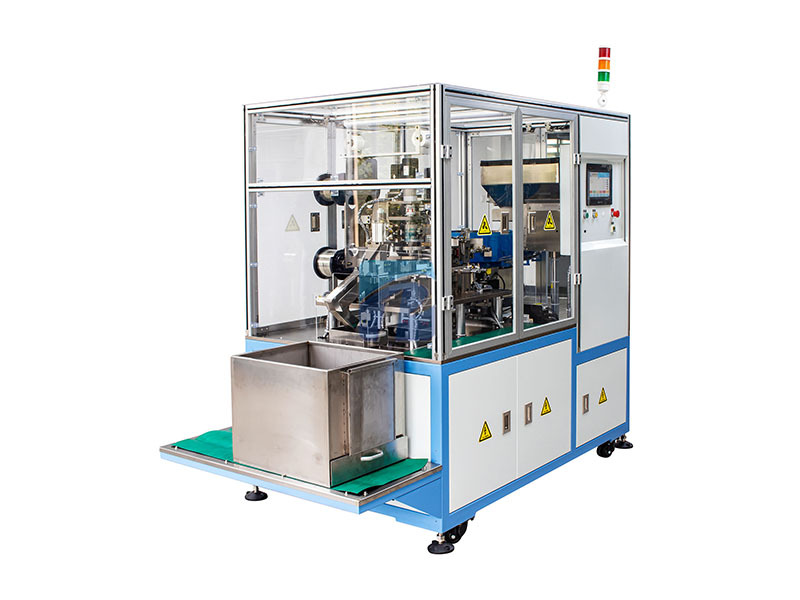

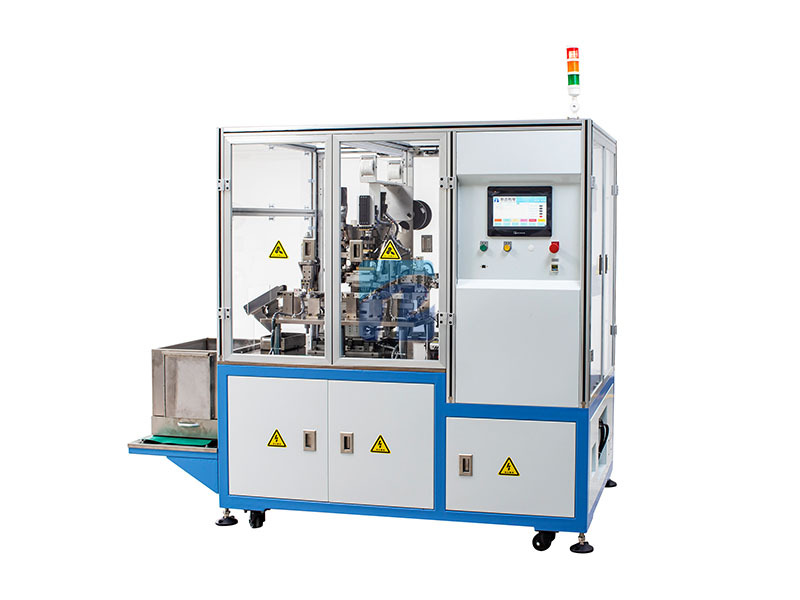

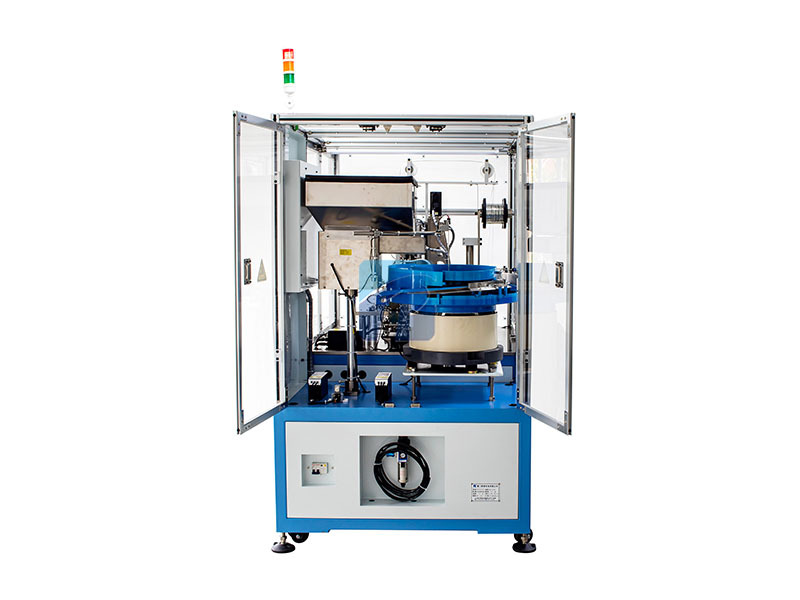

Online Inserting Machine For Bobbin
With Inserting Machine For Bobbin’s online modular cutting system and ability to insert two terminal pins at once, our Online Inserting Machine for Bobbin is the ideal choice for manufacturers looking to increase productivity and reduce costs.
- Information
Online Inserting Machine For Bobbin
Machine introduction
The online inserting machine for bobbin is designed for efficient and accurate bobbin winding. It supports a wide range of wire and bobbin specifications, meeting the needs of smart factories, significantly improving production continuity and reducing labor costs. This online inserting machine is designed to perform automatic loading, pin insertion, and bending onto the bobbin, making it an ideal addition to any production line.
Machine Features
1.The inserting machine uses a unique cutting mechanism that cuts the terminal pins directly from the feeding material, eliminating the need for manual cutting. This machine reduces material waste and increases production throughput by ensuring a seamless, uninterrupted workflow.
2.With its ability to insert two terminal pins at once, the machine ensures fast and efficient production.
3.One of the most notable features of our Online Inserting Machine for Bobbin is its modular design, making it easy to maintain and operate.
4.The machine is equipped with a user-friendly interface that allows for easy configuration of production parameters, ensuring optimal performance.
5.The inserting machine is designed to be compatible with automated winding machines, making it the perfect addition to any automated production line. This compatibility ensures that your production process is streamlined, efficient, and cost-effective.
6.The inserting machine has a pre-heating function for increased efficiency.
7.Quality conformity is guaranteed by the machine's automatic insertion process.
Applictaions:
The online inserting machine for bobbin is widely used in the following fields:
1. Automotive electronics (ignition coils, fuel injection systems, sensors).
2. Industrial motors/transformers (relays, contactors).
3. Manufacturing of electronic components such as consumer electronics (power adapters, chargers, connectors).
4. Medical equipment (precision instrument coils), aerospace (high temperature resistant coil components).
Its high-precision pin insertion technology can adapt to various bobbin specifications, meet the needs of automated production, significantly improve the production efficiency and terminal stability of coil products (such as solenoid valves, inductors), while minimizing human operation errors.
Technical Parameter
Model | SP-GA02 |
production efficiency | 1800PCS/H (MAX) |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Power Consumption | 1.0KW |
| Air Pressure (Mpa) | 0.45Mpa~0.65Mpa |
| Machine Size (mm) | 1500(W)×1200(D)×1800(H)mm |
| Machine Weight (mm) | About 1200KG |
