Automatic Assembly Line for Expansion Valve Coils

Expansion Valve Coil Assembly Line: From Manual Work to Intelligent Automation

The expansion valve is one of the most important components in refrigeration and automotive air conditioning systems. Its role is to regulate the flow of refrigerant into the evaporator, ensuring that the cooling process is stable, efficient, and reliable.

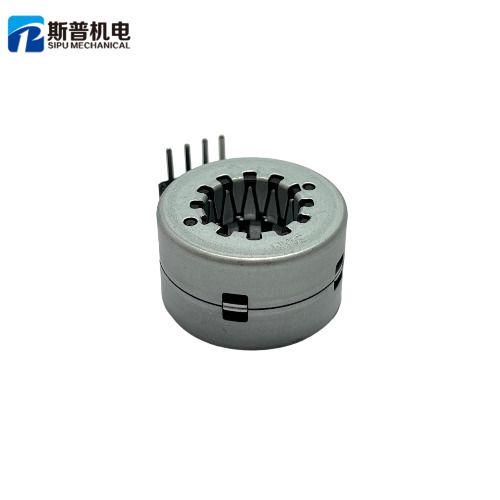

At the heart of the expansion valve is the expansion valve coil, which converts electrical signals into precise mechanical movement. This small yet vital part directly affects cooling performance, energy efficiency, and the overall safety of HVAC and automotive systems.

Traditionally, expansion valve coils relied on full manual assembly: workers had to hunch over workbenches to insert tiny pins one by one, press components with hand tools, and squint to align small parts—even a slight shake of the hand could misalign a pin, forcing them to start over. A single coil took several minutes to finish, and by the end of a shift, tired workers often made more small mistakes (like uneven pressing) that led to coils failing later. With growing demand in industries like automotive air conditioning, HVAC systems, refrigeration equipment, and industrial cooling, manufacturers require faster, more reliable, and scalable solutions.

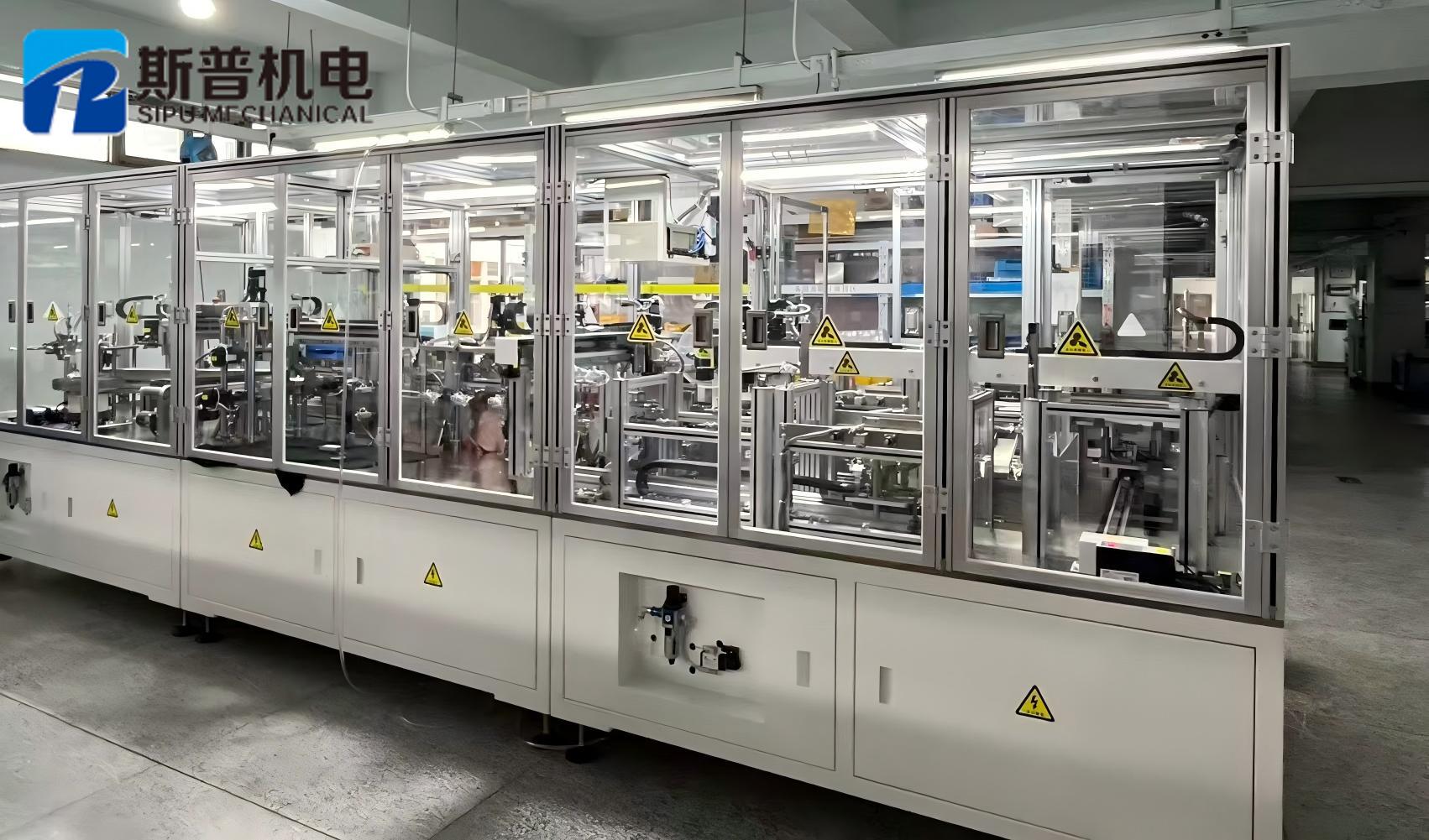

To address this need, SIPU recently developed and delivered a brand-new Expansion Valve Coil Assembly Line, designed to achieve high-efficiency, precision, and fully automated coil assembly. This production line marks a breakthrough from manual assembly to intelligent automation. It is capable of processing scattered parts and assembling them into finished coils with consistent quality, while dramatically reducing labor costs and error rates.

Features of SIPU's Expansion Valve Coil Assembly Line

Full Automation
The line integrates automated systems for pin insertion, crimping, and pressing... Every step is carefully controlled to maintain stability and accuracy. Operators no longer need to rely on repeated manual actions, as the machines perform the tasks consistently.

High Precision
Expansion valve coils require strict dimensional accuracy and stable performance. SIPU's assembly line uses advanced positioning systems to ensure that each component is placed precisely. This guarantees consistent electrical and mechanical properties across all coils.

Mass Production Capability
With automation, the assembly line can produce large volumes of coils in a short time. This supports the growing demand from the automotive air conditioning and refrigeration markets, where large-scale production is essential.

Flexible Design
The line can handle different specifications of expansion valve coils by adjusting tooling and settings. This flexibility allows manufacturers to quickly adapt to new product requirements or customized designs.

SIPU Solution
While the assembly line focuses on processes like pin insertion, crimping, and mechanical assembly, the coils themselves are also produced by SIPU's precision winding and soldering machines. This means SIPU provides not only the assembly equipment but also the upstream coil manufacturing solutions — a complete production package from raw material processing to final assembly.

Applications of ExpansionValve Coils

Expansion valve coils produced by this line are widely used in:

• Automotive Air Conditioning Systems – ensuring precise refrigerant control for passenger comfort and energy efficiency.

• Refrigeration Systems – from commercial refrigerators to industrial cooling plants.

• HVAC Industry – providing reliable performance for both residential and commercial climate control.

• Industrial Equipment – where temperature regulation is critical for machinery safety and efficiency.

The shift from manual coil assembly to SIPU's automated line is more than just a technological upgrade — it represents a transformation in manufacturing philosophy. Manual assembly required skilled workers, took significant time, and carried risks of inconsistency. Now, automation ensures:

• Stable and repeatable quality

• Increased productivity with fewer labor inputs

• Reduced defect rates and improved safety

• Lower overall production costs

This transition allows companies to stay competitive in global markets, meet international quality standards, and deliver products faster to customers.

A Step Toward Intelligent Manufacturing

The new assembly line reflects SIPU's dedication to intelligent manufacturing in the coil industry. By combining advanced mechanical systems, automation control, and years of experience in coil production, SIPU helps clients move toward a future where coil assembly is faster, smarter, and more sustainable.

Conclusion
SIPU's Expansion Valve Coil Assembly Line is not just an upgrade of equipment — it is a milestone in the automation of coil manufacturing. By replacing manual work with high-precision, automated assembly, SIPU enables manufacturers to achieve faster production, better quality, and lower costs. With both coil-making machines and assembly lines in its portfolio, SIPU offers a complete solution for expansion valve coil production, supporting industries from HVAC to automotive air conditioning with reliable and advanced manufacturing technology.

This innovation underscores SIPU's vision: delivering intelligent, automated, and scalable solutions that lead the coil industry into the future of smart manufacturing.
