SIPU ABS Coil Winding Machine Solutions | Precision Automated Coil Production

In today's rapidly growing automotive industry, safety remains the top priority. ABS Coil (Anti-lock Braking System Coil), as a core component of the ABS system, plays an essential role in ensuring vehicle safety. With the advancement of precision winding technology and the continuous improvement of automatic winding machines, the manufacturing of ABS Coils is undergoing an unprecedented transformation.

The Connection Between ABS Coil and Precision Winding

ABS (Anti-lock Braking System) prevents wheel lock-up during sudden braking by monitoring wheel speed, thereby ensuring vehicle stability and safety. The ABS Coil is the key component that enables electromagnetic induction and signal transmission within this system.

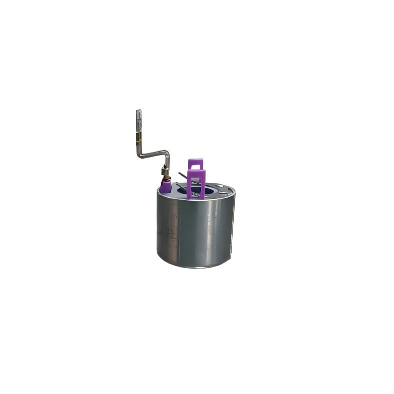

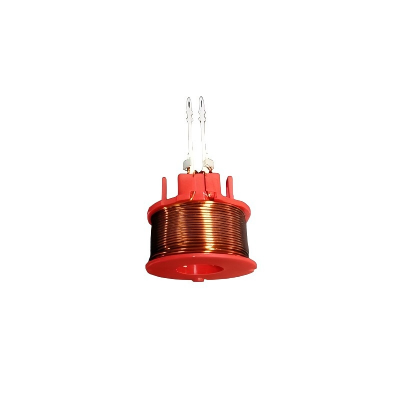

These coils typically use ultra-fine enameled wires with thousands of turns, which requires highly accurate precision winding. Even the smallest deviation can affect the accuracy of the transmitted signal, ultimately impacting vehicle safety performance. For this reason, ABS Coil has become one of the most challenging products in the winding industry.

For example, when a car brakes suddenly on a wet road, the ABS Coil provides real-time wheel speed signals within milliseconds, helping the system prevent skidding. This process relies on the high precision and stability of coil winding.

Challenges in ABS Coil Manufacturing and the Role of Winding Machines

As coil applications expand into automotive, medical, and consumer electronics, ABS Coil production places increasingly strict demands on manufacturing equipment:

• High-precision winding: Advanced CNC winding machines are required to ensure consistent coil alignment, with spacing tolerances controlled at the micron level.

• Production stability: Winding machines must support long-term, high-speed operation to guarantee consistency in mass production.

• Testing and traceability: Automated inspection has become the standard in the winding industry, ensuring resistance, inductance, and other critical parameters.

Traditional manual or semi-automatic winding methods can no longer meet these requirements. Only fully automatic winding machines and intelligent production lines can achieve true scalability and high-quality production.

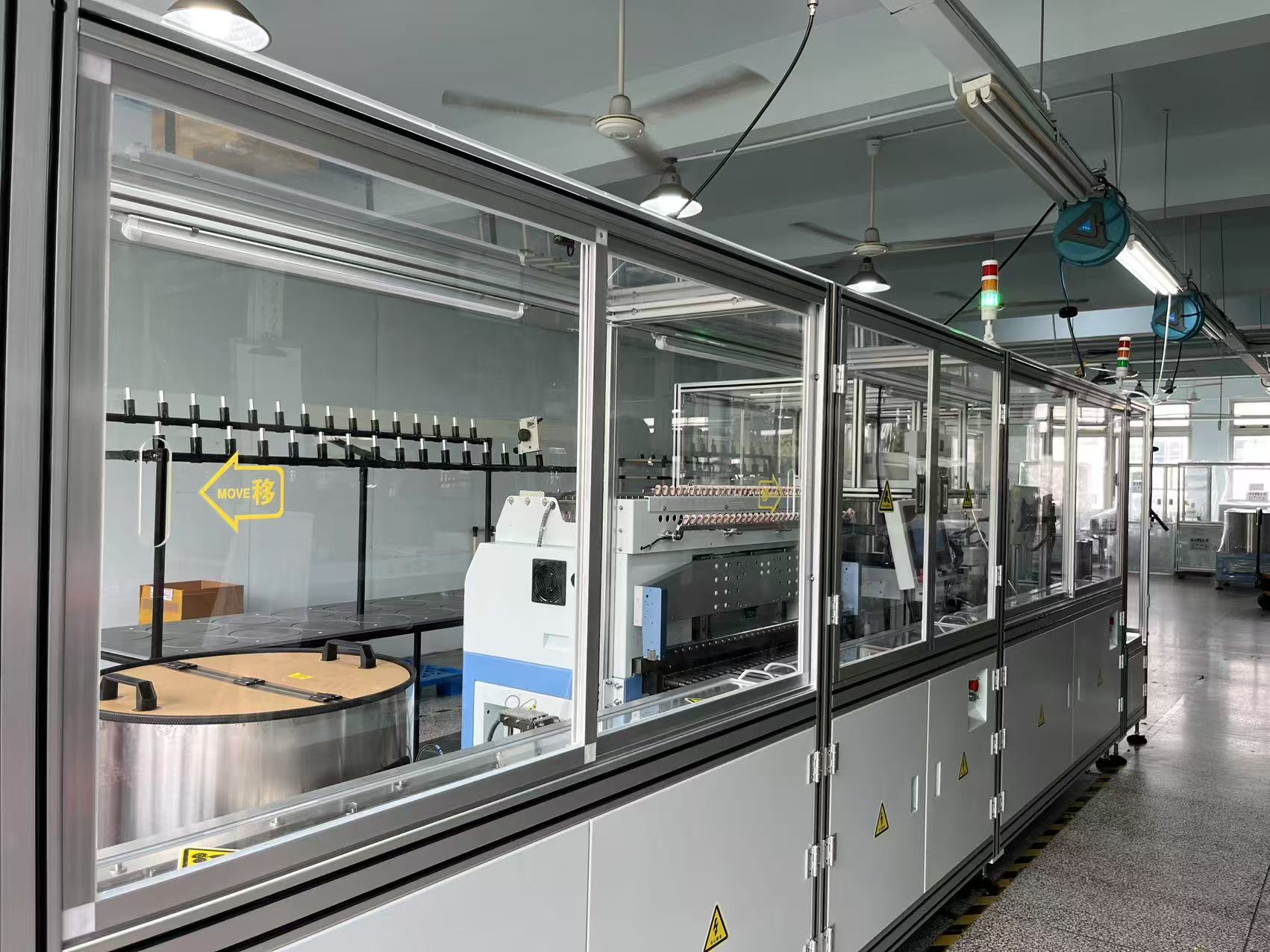

SIPU ABS Coil Automated Production Line

In response to the needs of automotive customers, SIPU has successfully delivered a fully automated ABS Coil production line, which integrates:

• High-precision CNC winding machines for high-speed and accurate wire winding;

• Automatic soldering stations to ensure strong and reliable connections;

• Automated testing and traceability systems to monitor electrical performance in real time and generate quality reports;

• Full-automatic assembly units to complete the entire process from winding to finished products.

This production line has significantly increased efficiency, achieving a daily capacity of tens of thousands of ABS Coils, while reducing manual intervention and defect rates. After deployment, our customer successfully passed international automotive component quality certifications, and delivery lead time was shortened by 30%, making it a benchmark project in the industry.

Broader Prospects for Coil Applications

Beyond ABS Coils, precision winding and fully automated coil production lines are widely applied in:

• Automotive electronics: motor coils, sensor coils;

• Medical devices: micro inductive coils, implantable device coils;

• Consumer electronics: wireless charging coils, speaker and motor coils.

The winding industry has become a key sector in modern manufacturing, while precision winding machines and intelligent production lines are the driving force behind its continuous growth.

With the rise of new energy vehicles, intelligent driving, and industrial automation, the demand for ABS Coils will continue to grow, placing higher requirements on winding machine accuracy, automation in the winding industry, and coil application innovation.

SIPU will continue to focus on the development and innovation of high-precision winding machines, fully automated coil production lines, and automatic assembly solutions, aiming to provide reliable and efficient intelligent manufacturing support for our customers. In the future, we look forward to working with more partners to jointly advance the intelligent development of the ABS Coil and coil application industry.
